ECO Type
By incorporating the exquisite technology of SINFONIA MICROTEC CO., LTD., the world top class low energy consumption types of "Eco-clutches series" are now available.

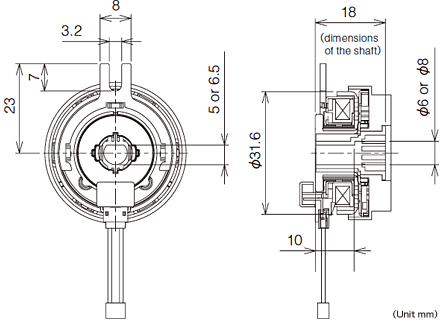

MCE30TL

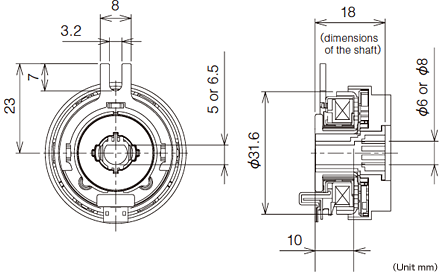

MCE30TC
| Type | MCE30TL | MCE30TC |
|---|---|---|
| Rated Voltage | DC24V | |
| Capacity | 1.5W(±10%) | |
| Static Friction Torque | Above 0.29N⋅m(3.0kgf⋅cm) | |
| Insulation Classification | E Class[Electrical Safety⋅TUV(IEC950)] A Class[UL⋅CSA] | |
| Withstand Voltage | AC 600V for 1 second | |
| Insulating Resistance | Above 100MΩby DC500V-Mega | |
| Safety Standard | The standards of Electrical Safety, UL⋅CSA⋅TUV are satisfied | |
| Lead Wire | Standard wire of UL1061⋅VW-1:CSA⋅AWM AWG26:Black Others and halogen free compliance is also negotiable | − |
| Shaft | Besides of the standard, the direction and dimension of D-Cut shall be discussed | |
