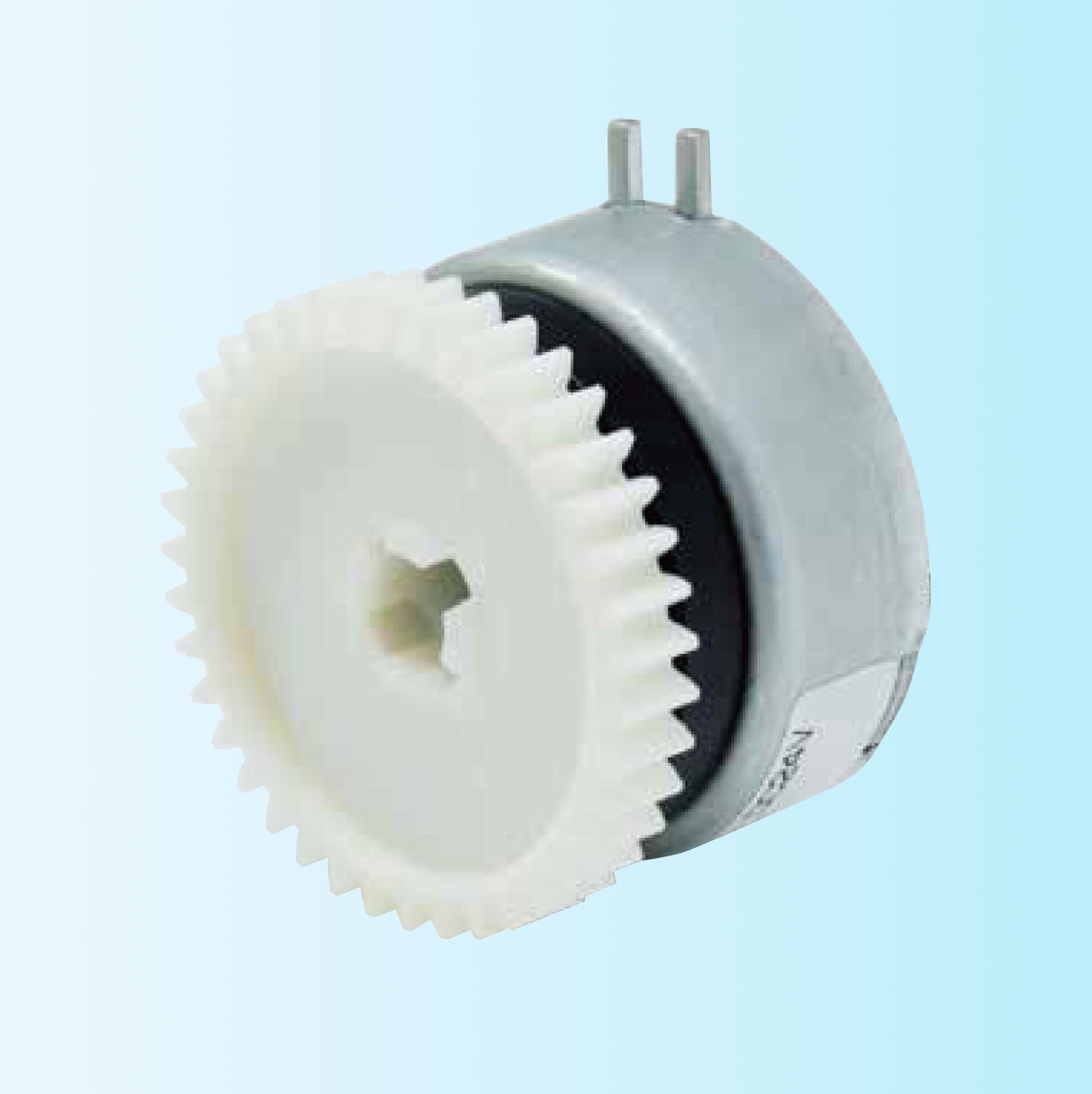

DSTC-40G
The feature highly accurate in angular segmentation is the most suitable for angle setting and for high torque transmitting
Characteristic
Stopping in proper segmentation
Link-up with 1 pulse of input signal, the output shaft will stop exactly to the setting angle.

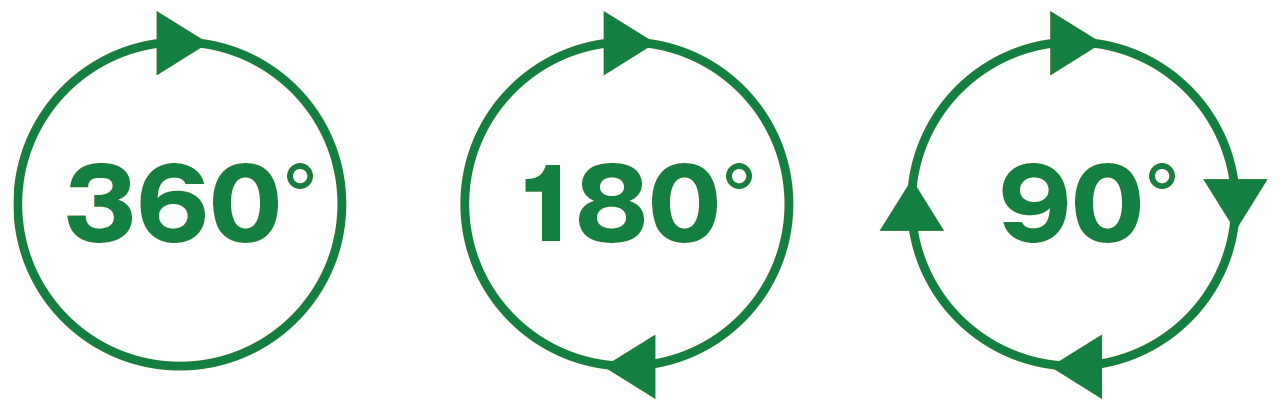

Standard specification is 360° for 1 step
Selectable take off directions
Related to the clutch baffle, lead wire take off place has 3 optional directions.
Malfunction and dust prevention design
Sucking portion becomes dust-proof type, no worry about malfunction by foreign body contamination.
UL⋅CSA complied products
International standards UL⋅CSA complied materials are used in our parts e.g. coil, lead wire, ..etc.
They are able to assemble in export finished goods without modification.
Environmentally friendly product
Complied with RoHS ; halogen free compliance is also negotiable.
Internal supply in China
Lead time and delivery cost are reduced remarkably due to internal supply by our factory in Guang Dong Province, China.
DSTC-40G

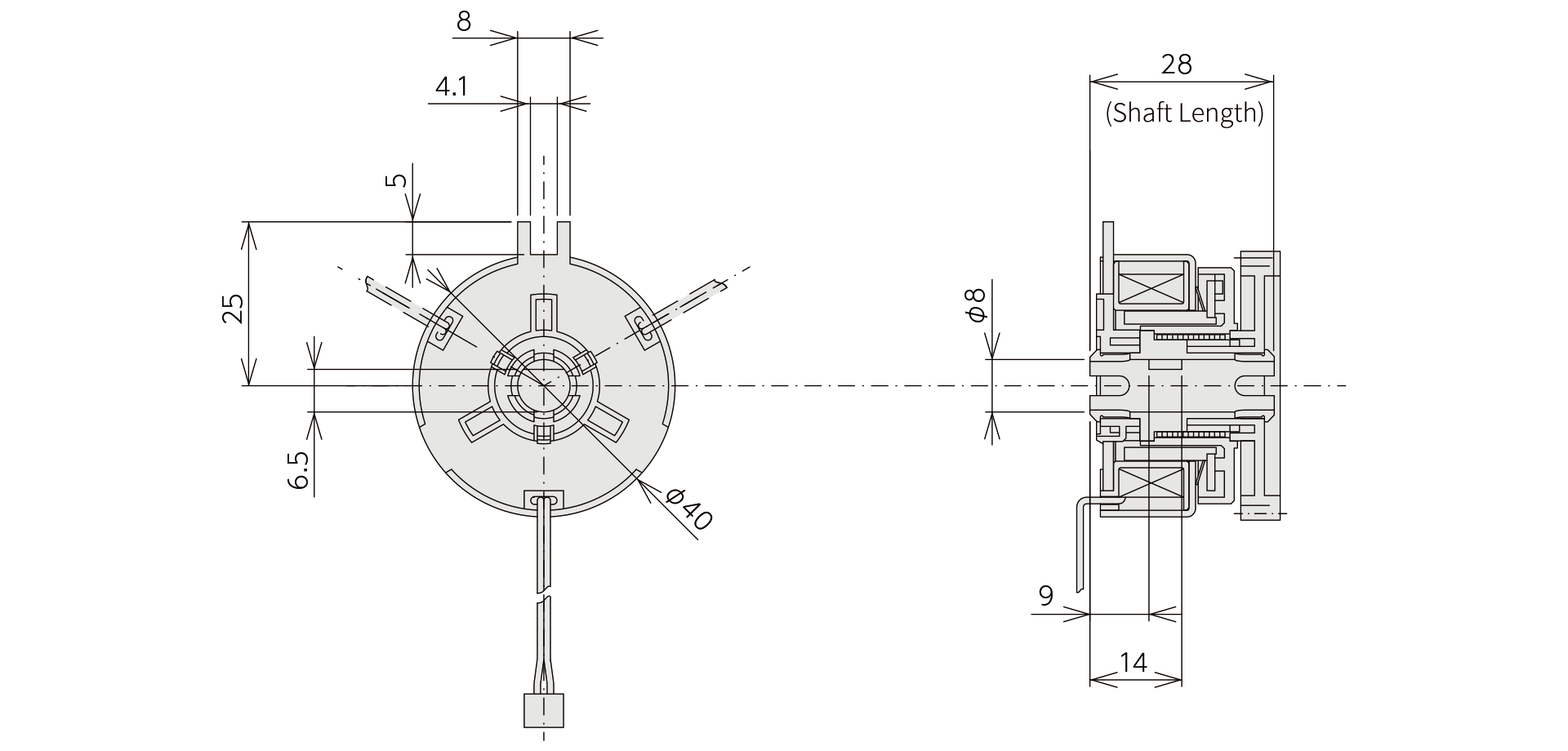

Structure & external form dimensions
DSTC-40G
unit：mm
Specifications
| Type | DSTC-40G |
|---|---|
| Rated Voltage | DC24V |
| Capacity | 8.0W（±10%） |
| Static Friction Torque | Above 0.49Nm(5.0kgfcm) |
| Insulation Classification | E Class[Electrical Safety⋅TUV(IEC950)] A Class[UL⋅CSA] |
| Withstand Voltage | AC 600V for 1 second |
| Insulating Resistance | Above 100MΩby DC500V-Mega |
| Safety Standard | The standards of Electrical Safety, UL⋅CSA⋅TUV are satisfied |
| Lead Wire | Standard wire of UL1061⋅VW-1:CSA⋅AWM AWG26:Black Others and halogen free compliance is also negotiable |
| Shaft | Besides of the standard, the direction and dimension of D-Cut shall be discussed |
Catalogue Download
DSTC-40G568 KB
Application
- Office automation equipments (Multifunctional copyingmachine, Printer, Printing machine)
- Automatic vending machine
- ATM
- Household automatic door
- Automatic ticketing machine
- Medical equipments
- Automatic curtain...etc.
