SMT-SB35R
Debut of light load braking / holding brake
It also capable of overload protection (slip mechanism)

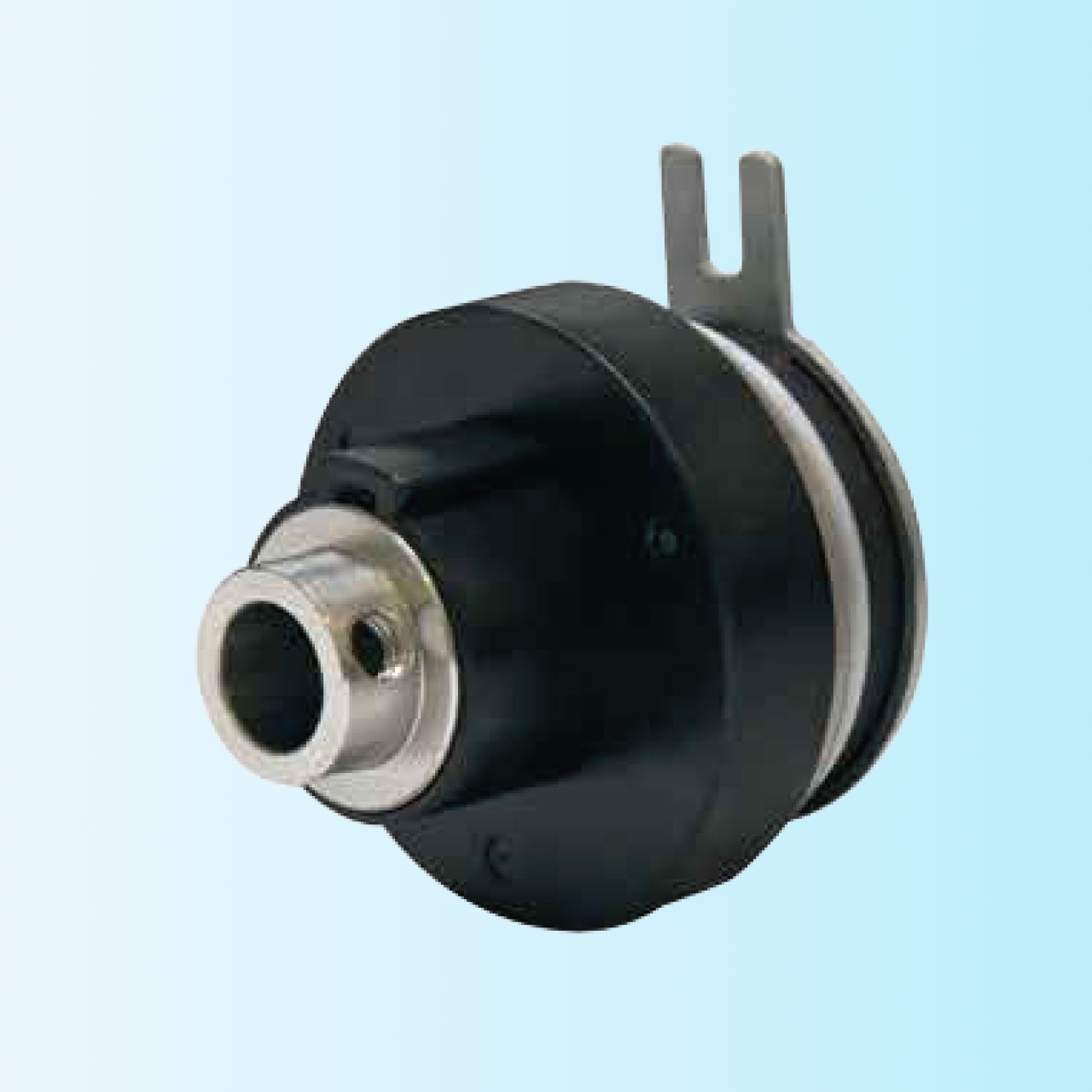

Characteristic
Small brake in clutch size
It adopts our own spring brake method, not friction brake with plate.
Quiet design (Idling)
With the internal clutch mechanism, there is no sliding noise during idle caused by friction plate.
Custom setting of 0.05 to 0.2 N ⋅ m is possible
Custom setting of brake torque (0.05 to 0.2 N ⋅ m) is possible, it corresponds to a wide range of applications.
Improvement of work efficiency by easy installation
Easy to install with screws only. It is unnecessary to adjust the gap by part disassembly at the time of installation.
Work with irregular overload※
With the slipping mechanism, it can be used as a protection device for the drive unit.
Also, forcible operation at the time of power failure is realized by the same mechanism.
※The method depends on usage.
SMT-SB35R

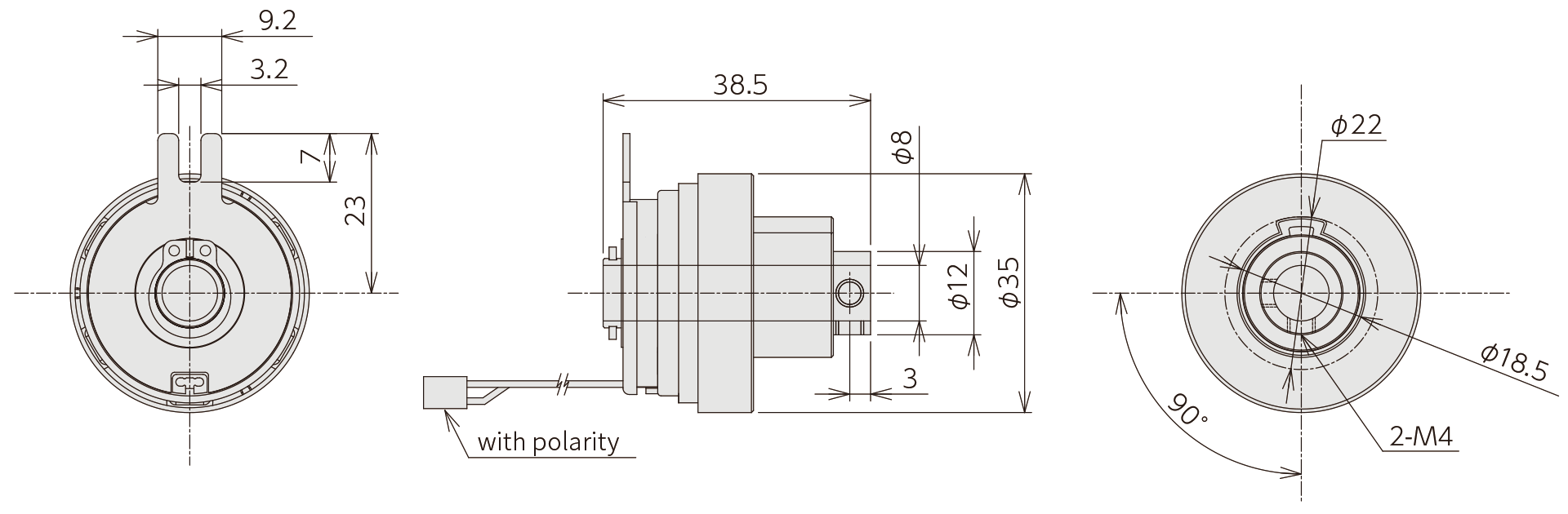

Structure & external form dimensions
SMT-SB35R
unit：mm
Specifications
| Type | SMT-SB35R |
|---|---|
| Operation | Non-excitation operation |
| Dimension | 38.5 × φ35（mm） However, the rotation stopper is omitted |
| Brake torque setting | 0.05, 0.1, 0.15, 0.2N･m（0.5, 1.0, 1.5, 2.0kgfcm） |
| Operating voltage | DC24（V） |
| Power consumption | 3.0（W） |
| Input method | Shaft |
| Direction of rotation | Both CW and CCW |
The shape, specification etc are subject to change without prior notice.
Catalogue Download
SMT-SB35R598 KB
Application
- Braking, holding brake (normally used)
- Position holding and overload protection device of robot arm, etc.
- Maintaining the stop position of electric curtain and window blind, and forced operation at power failure
