SSC-A
Between two rotating axes of machines and devices,
force transmission/interruption (overload protection) is possible
Characteristic
Dry multi-plate friction type mechanical clutch
When the torque is below the specified torque, force is transmitted, A clutch with a mechanism that slips when the load torque exceeds the specified torque.
Compact type with an outer diameter of φ27 mm and a total length of 27.8 mm
Small type, support low torque.
No torque adjustment required during use
Can be used without fine torque adjustment.
Installation without tools
Easy installation by simply inserting into a shaft with D-cut.
Eco clutch without electricity input
Electricity is not required, so wiring work can be saved.
Contribute to power saving.

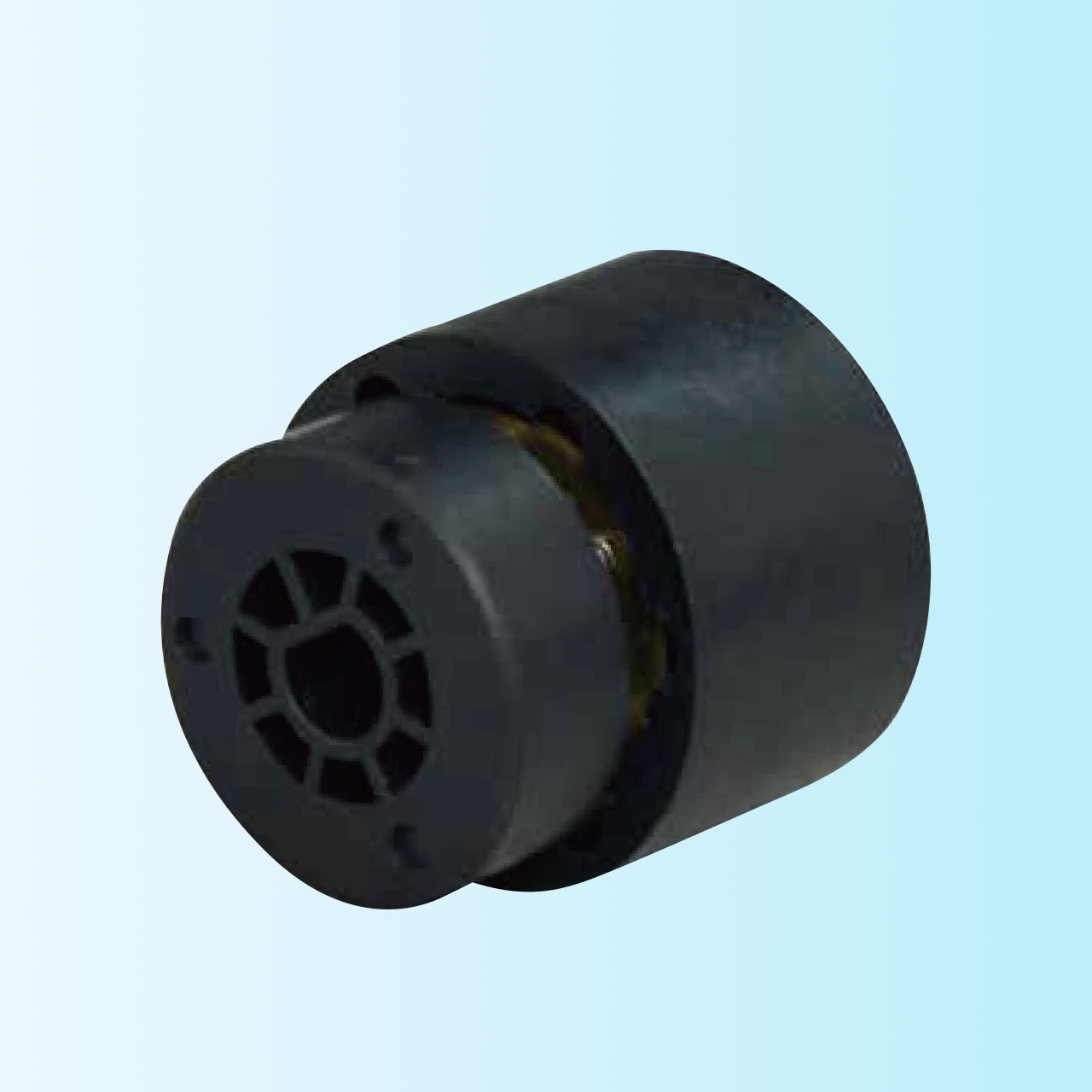

SSC-A

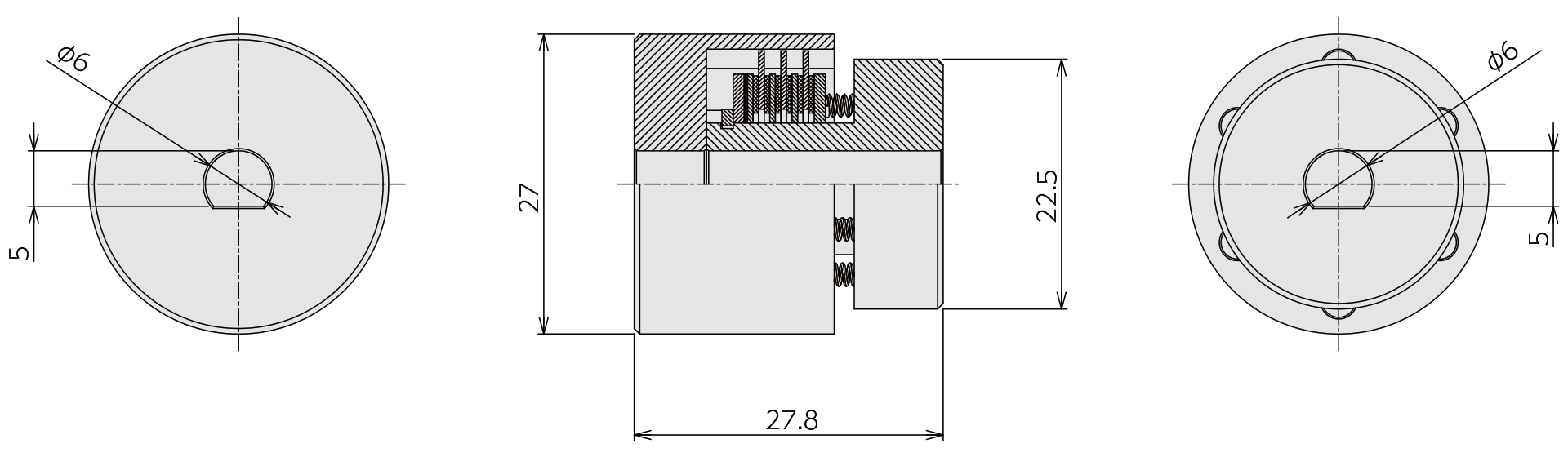

Structure & external form dimensions
SSC-A
unit：mm

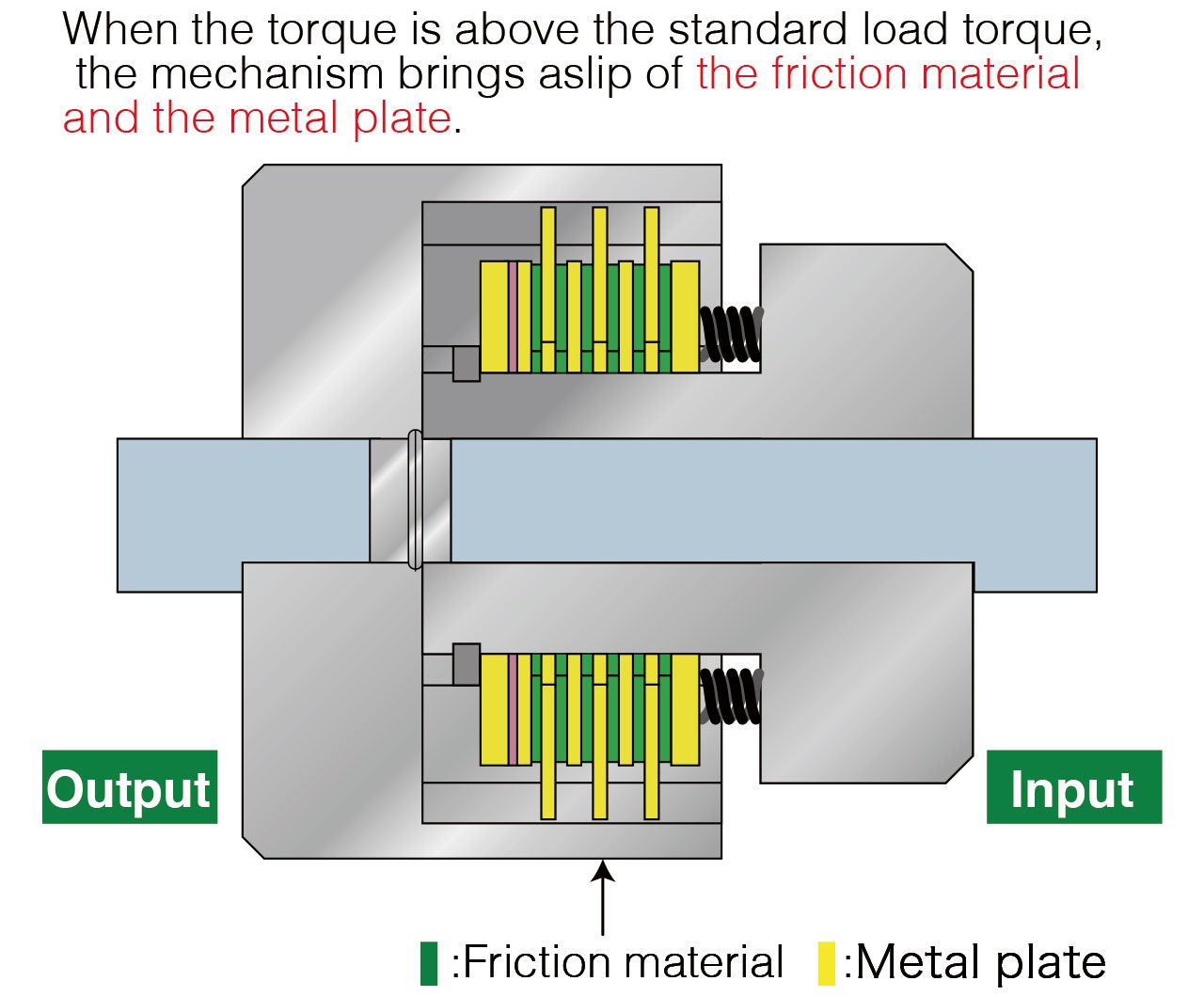

Internal structure
Specifications
| Type | SSC-A |
|---|---|
| Input method | Connection between two axes |
| Static Friction Torque | 0.49N・ｍ（5.0kgfcm）±10％ |
| Number of rotations use | below 90rpm |
The shape, specification etc are subject to change without prior notice.
Catalogue Download
SSC-A435 KB
Application
- for devices requiring continuous slip, overload protection device.
- for Paper and roll feed drive.
- for amusement device.
