SMT-50TR
Reduction of power consumption, For energy saving items
Characteristic
Non-excitation actuated product (permanent magnet type)
Static friction torque is generated during non-excitation, releaseing the connection is operated when excited.
The operation is a reverse of that of the commonly used excitation electromagnetic clutch product.
Energy saving of equipment
It is possible to reduce the total power consumption where the continuous energization time is long.
please contact us for usage conditions
Control the surrounding area's temperature rise
Although it is connected for a long time, it will not emit heat.
Effectively suppress the temperature.
Installation method is the same as before
similar to as of our thin clutch.
Use 24V DC
Voltage setting considering the installation in OA and FA equipment.
SMT-50TR

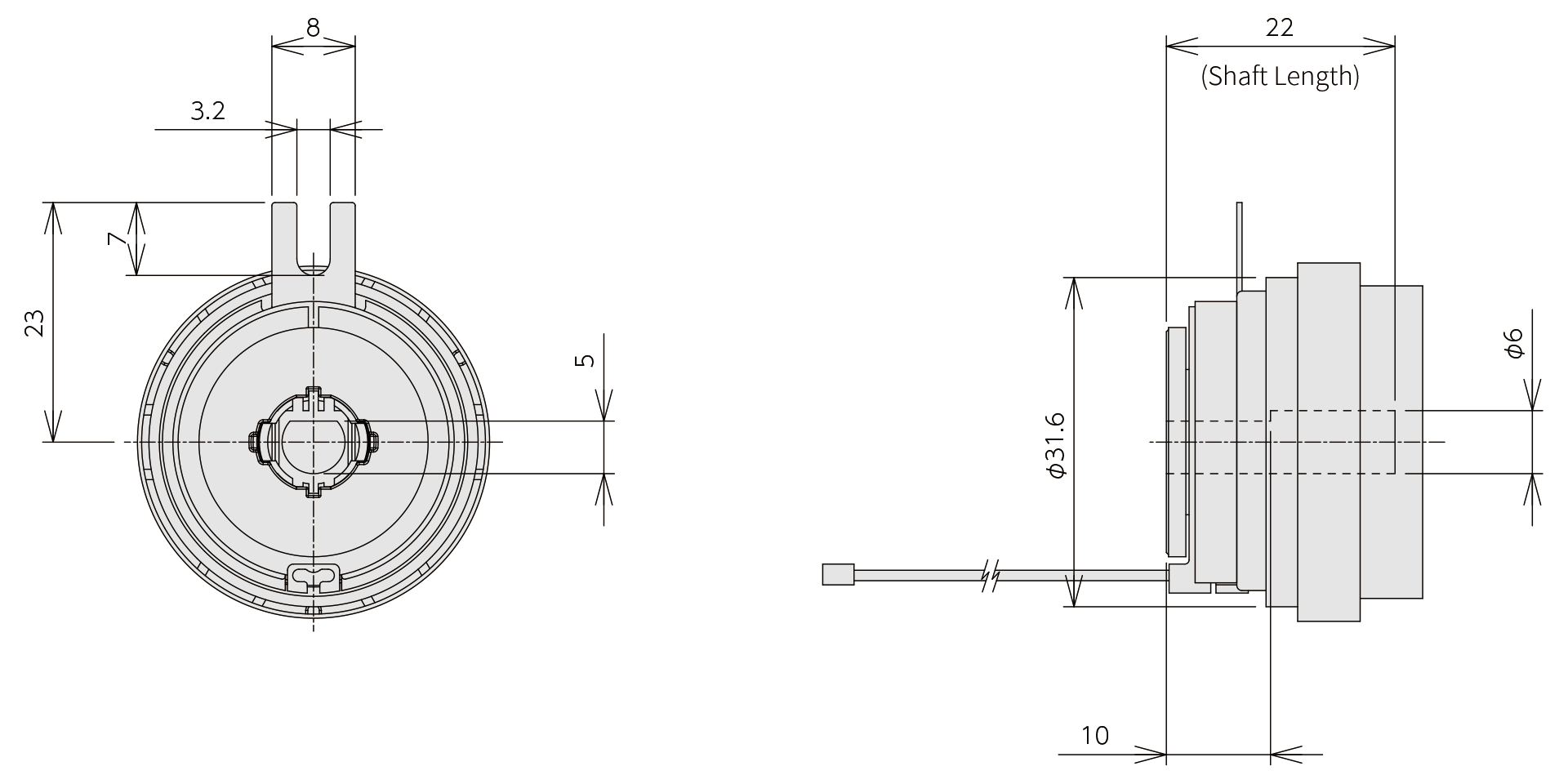

Structure & external form dimensions
SMT-50TR
単位：mm

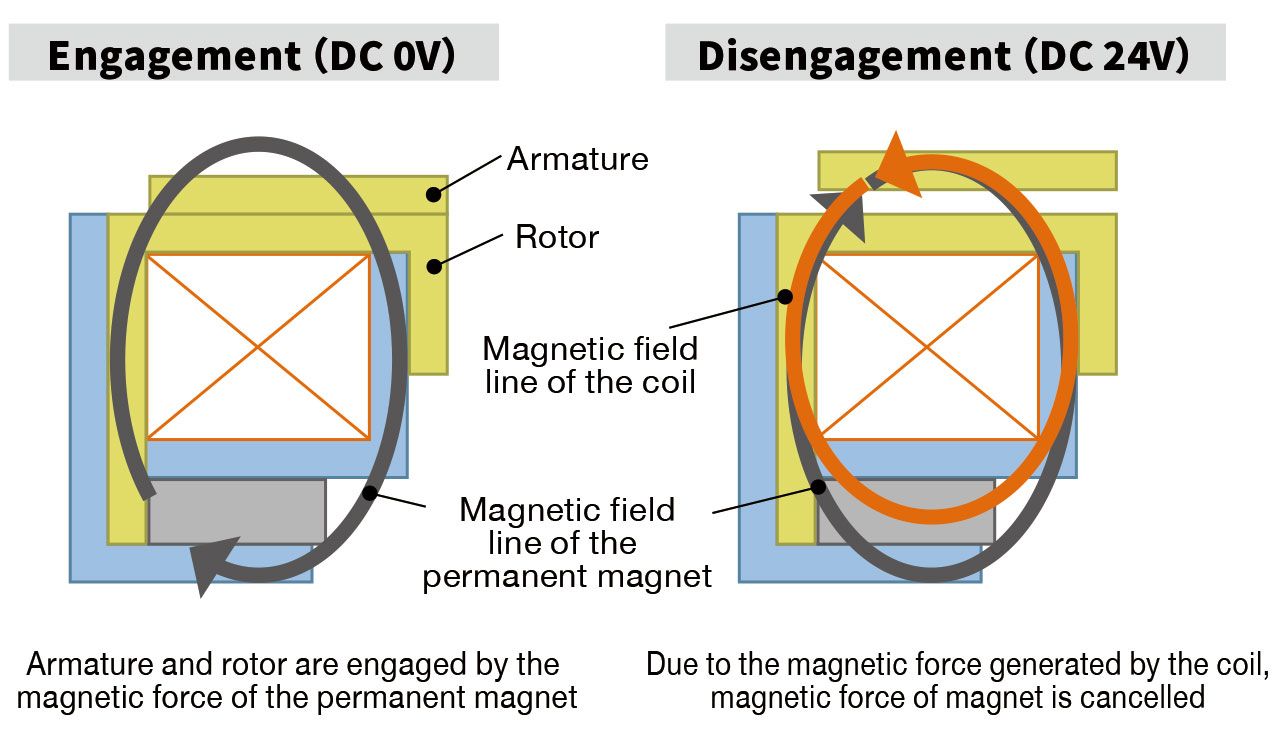

Internal structure
Specifications
| Type | SMT-50TR |
|---|---|
| Rated Voltag | DC24V ±10% |
| Capacity | 3.0W ±10% |
| Static Friction Torque | 0.4N･ｍ（Non-excitation） |
| Insulation Classification | E Class [Electrical Safety・TUV(IEC950)] A Class [UL・CSA] |
| Withstand Voltage | AC 600V for 1 second |
| Insulating Resistance | Above 100MΩ by DC500V-Mega |
| Safety Standard | The standards of Electrical Safety, UL, CSA, IEC, EN, CE are satisfied |
The shape, specification etc are subject to change without prior notice.
Catalogue Download
SMT-50TR512 KB
Application
- OA equipment, FA equipment.
- Long drive transmission, where a release is required depending on the situation.
- Position hold in non-excitation state, safety groundbreaking in case of power failure.(simple lock, etc.)
