MR300P / MR2000G
Capable of corresponding sensitive control with outstanding responsibility and flexible torque adjustment
Characteristic
Flexible torque control
By easily adjusting torque by controlling current and voltage (magnetic force) with programming and the electric circuit, it is capable of corresponding various request of customers.
Agile response
By distributing rated voltage, it is generating rated torque without delay.
Quiet operation
Noise is prevented by the changes of the magnetic force, the viscosity of MRF (Magneto-Rheological Fluid) changes, result in a change in torque.
Realizing long life without friction
Since there is no driving part to generate torque, no physical friction occurs, longer product life has been achieved.
Wide purpose of use
It is suitable for control devices that require sensitive torque control.
MR300P
MR2000G
Structure & external form dimensions

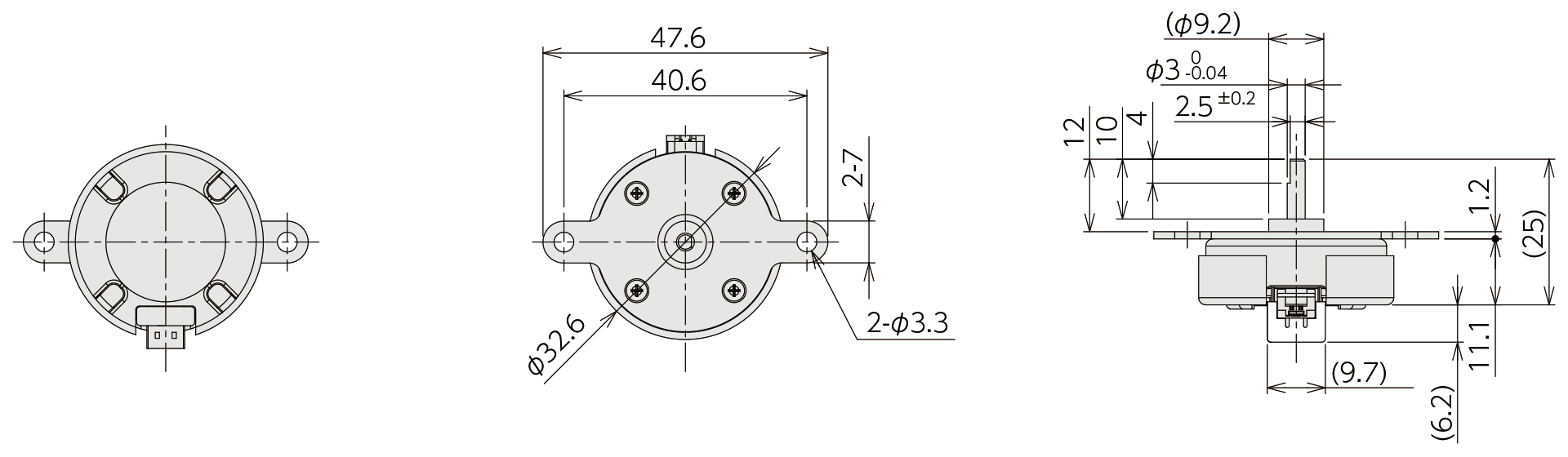

MR300P
単位：mm

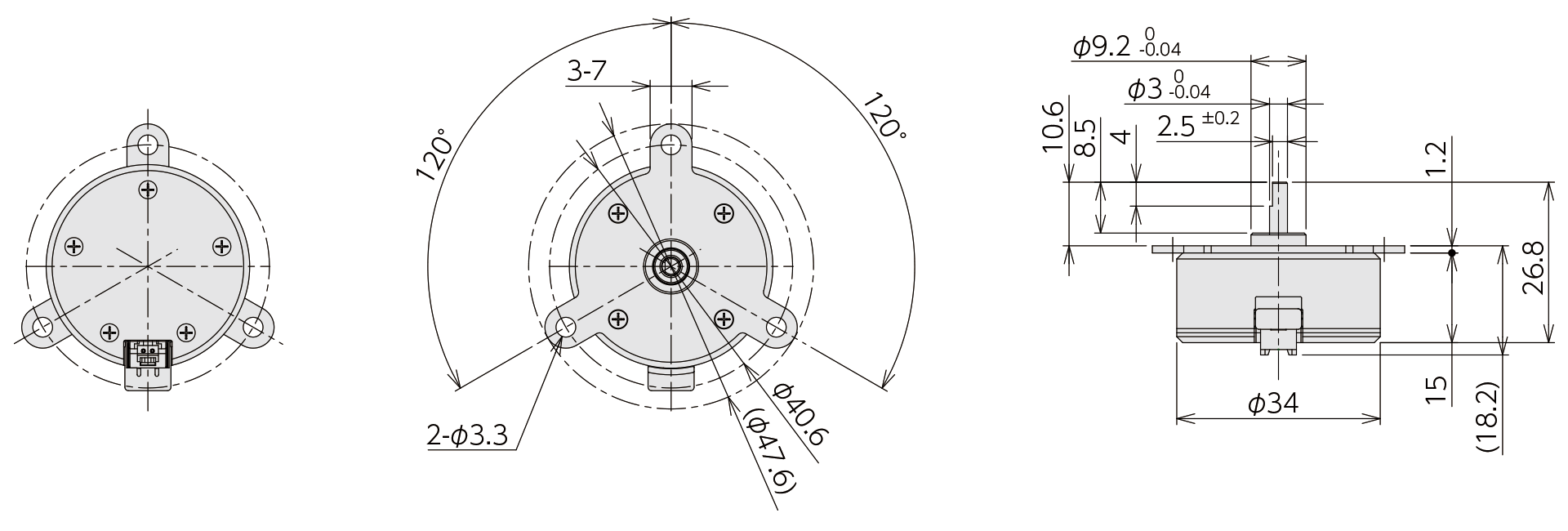

MR2000G
unit：mm
Internal structure
Specifications
| Type | MR300P | MR2000G |
|---|---|---|
| Rated Voltage | DC12V | DC24V |
| Rated Current | 0.163A | 0.129A |
| Rated Capacity | 2.0W | 3.08W |
| Coil Resistance | 73.6Ω±10%（20℃） | 186.8Ω±10%（20℃） |
| Max. Torque | 0.03N･m or more（20℃） | 0.2N・m(300gf⋅cm) or more（20℃） |
The shape, specification etc are subject to change without prior notice.
Catalogue Download
MR300P / MR2000G475 KB
Application
Operating Equipment
- Pachinko, gaming machine operation unit (touch control, effect control etc.)
- Joystick
Medical / Welfare Equipment
- Articulating part of medical robot
- Operation part of surgical robot
- Articulating part of prosthetic brace
- Training equipment (load control unit etc.)
- Fitness equipment etc. (load control unit etc.)
Industrial Equipment
- Torque Limitter
- Brake
- Tension Control
