MA-D03 / MA-D04
Pursued maximum downsizing "MA-DO3"
Tolerant with high pressure and high rotation speed "MA-DO4"
Characteristic
Environmentally friendly product
Complied with RoHS & halogen free.
UL⋅CSA complied products
International standards UL⋅CSA complied materials are used in our parts e.g. coil, lead wire, ..etc.
They are able to assemble in export finished goods without modification.
Internal supply in China
Lead time and delivery cost are reduced remarkably due to internal supply by our factory in Guang Dong Province, China.
MA-D03
MA-D04
Structure & external form dimensions

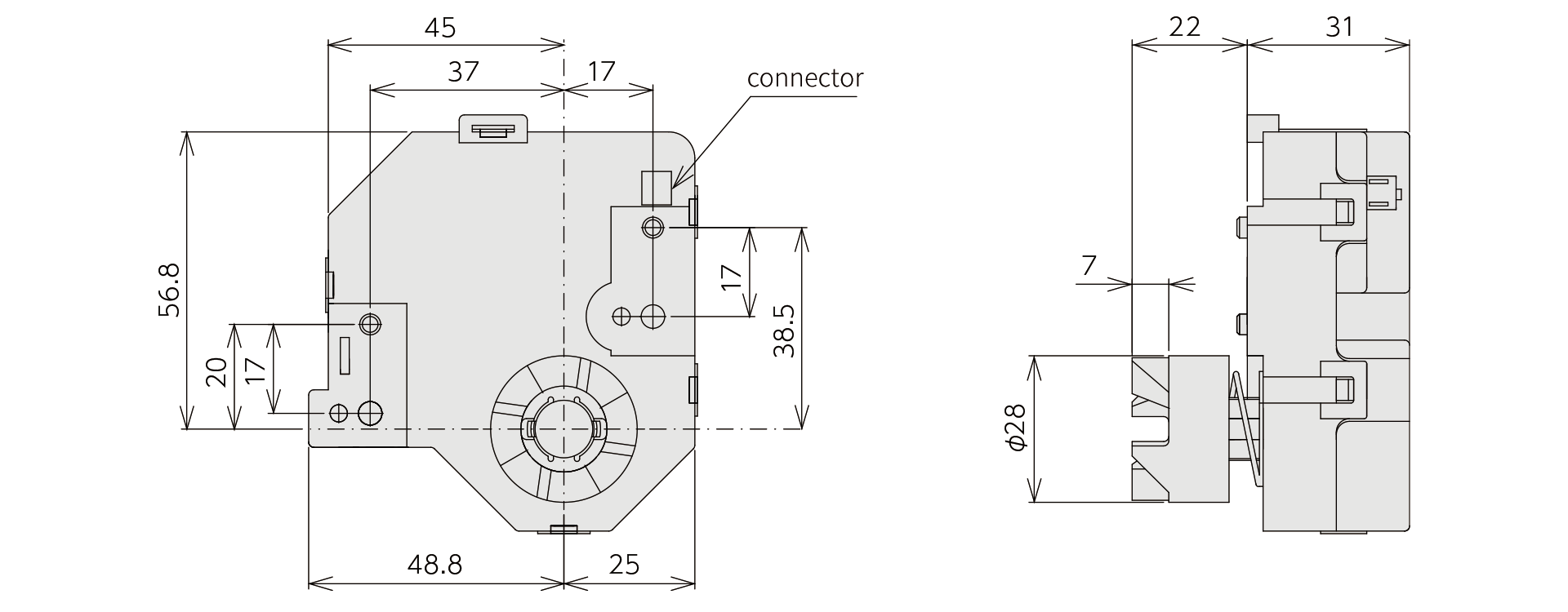

MA-D03
単位：mm

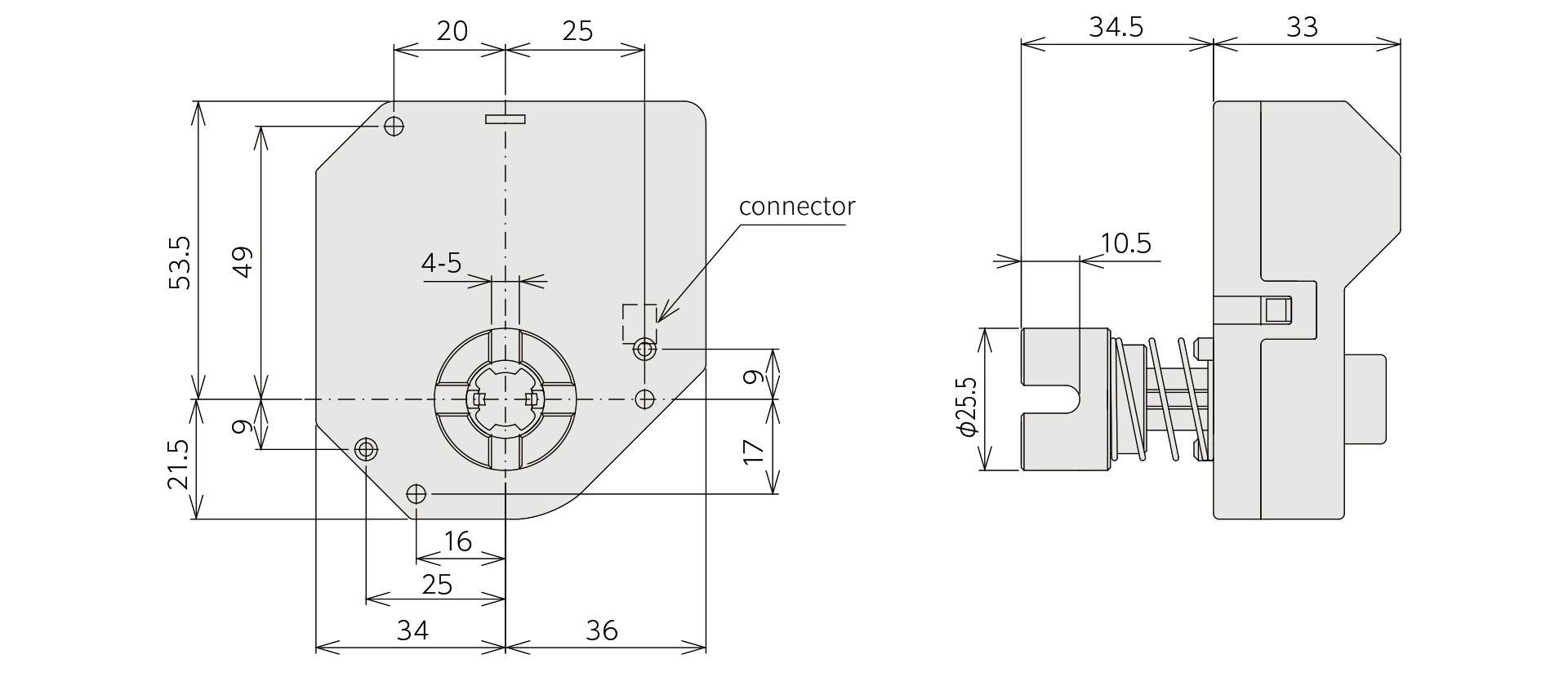

MA-D04
単位：mm
Specifications
| Type | MA-D03 | MA-D04 | |
|---|---|---|---|
| LOW | HI | ||
| Rated Voltage | DC24V | DC24V | |
| Rated Torque | 2.0N･m | 1.5N･m | 0.45N・m |
| Rated Rotation | Above 1.5r/min | Above 12.0r/min | Above 70.0r/min |
| Rated Load Current | Below 200mA | Below 1000mA | |
| No Load Rotation | Above 2.8r/min | Above 19.0r/min | Above 95.0r/min |
| No Load Current | Below 80mA | Below 250mA | |
| Restraint Torque | Above 3.0N⋅m | Above 3.0N⋅m | Above 0.7N⋅m |
| Restraint Current | Below 400mA | Below 1500mA | |
Catalogue Download
MA-D03 / MA-D04358 KB
Application
- Paper feeder tray lifting for copy machine
- printer ejector tray driving for copy machine
- printer toner stirring for copy machine
- printer
