MPC
Plunger Suction type device that can shorten assembling time and save space
Characteristic
Stroke amount 2mm and a suction force of 10gf
With stroke amount of 2mm and a weight of 10g can be sucked.
By returning spring inside and it returns to the original position when the power is off.
Spring force 10gf, rated capacity 4W.
A freedom in installation with a thumb size
Maximum outer diameter is 25 mm, total length is 22 mm.
Easy to install and no need for adjustment
Since there is a hole in the center of the device, it can be installed on the same axis with a counterpart component.
There is no need for mounting adjustments such as alignment and engagement with the other party.
Noise reduction
As no touching metals eachother, there is no high metal noise during operation.
Approximately 15% noise deduction comparing to solenoid ( movable iron core type)
※Based on our research.
MPC

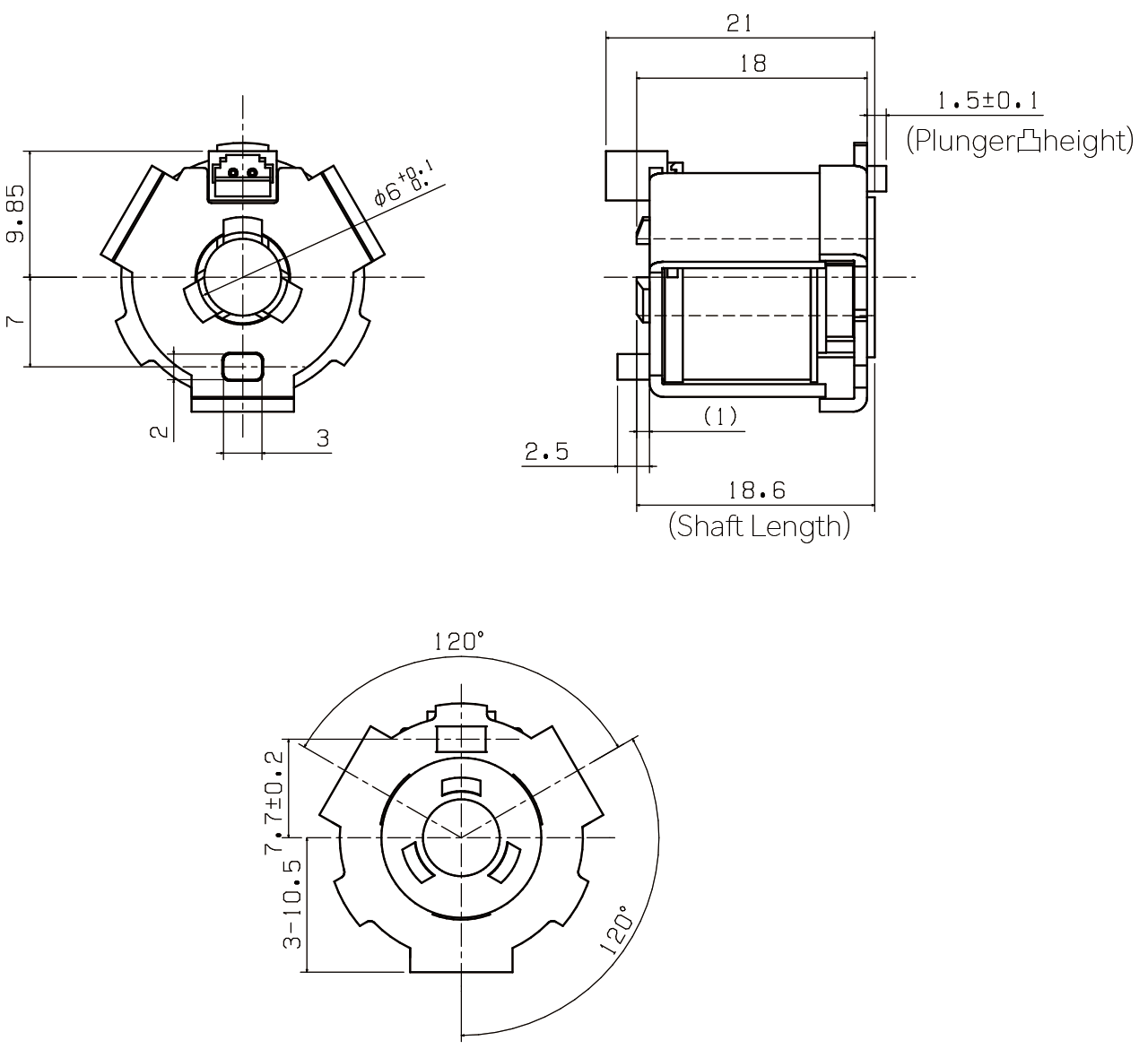

Structure & external form dimensions
MPC
単位：mm
Image of operation
Catalogue Download
MPC799 KB
Application
- Position of controlling the timing of the movement of a counterpart component.
- OA equipment, FA equipment.
- Amusement Equipment, Security equipment ,etc…
