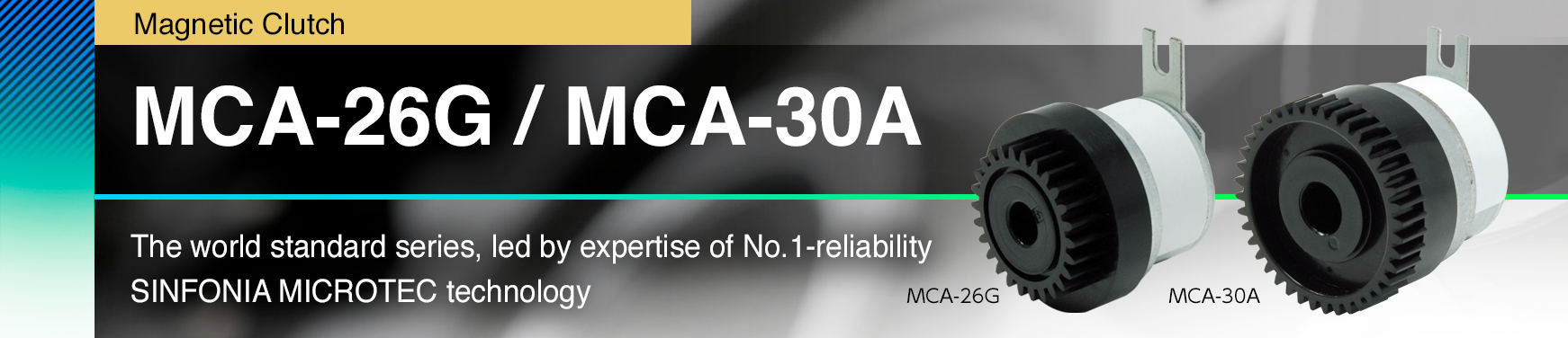

MCA-26G / MCA-30A
The world standard series, led by expertise of No.1-reliability SINFONIA MICROTEC CO., LTD. technology
Characteristic
New structure - Enhancing the precision of contact surface
Eliminate the pressing operation in sub-assembly to assure the precision of parts.
Obtain the stability of torque more than ever.
Realization of high durability through exclusive parts
By exclusive inner bush, we maintain the high durability of the clutches.
UL⋅CSA complied products
International standards UL⋅CSA complied materials are used in our parts e.g. coil, lead wire, ..etc.
They are able to assemble in export finished goods without modification.
Environmentally friendly product
Complied with RoHS ; halogen free compliance is also negotiable.
Internal supply in China
Lead time and delivery cost are reduced remarkably due to internal supply by our factory in Guang Dong Province, China.
MCA-26G
MCA-30A
Structure & external form dimensions

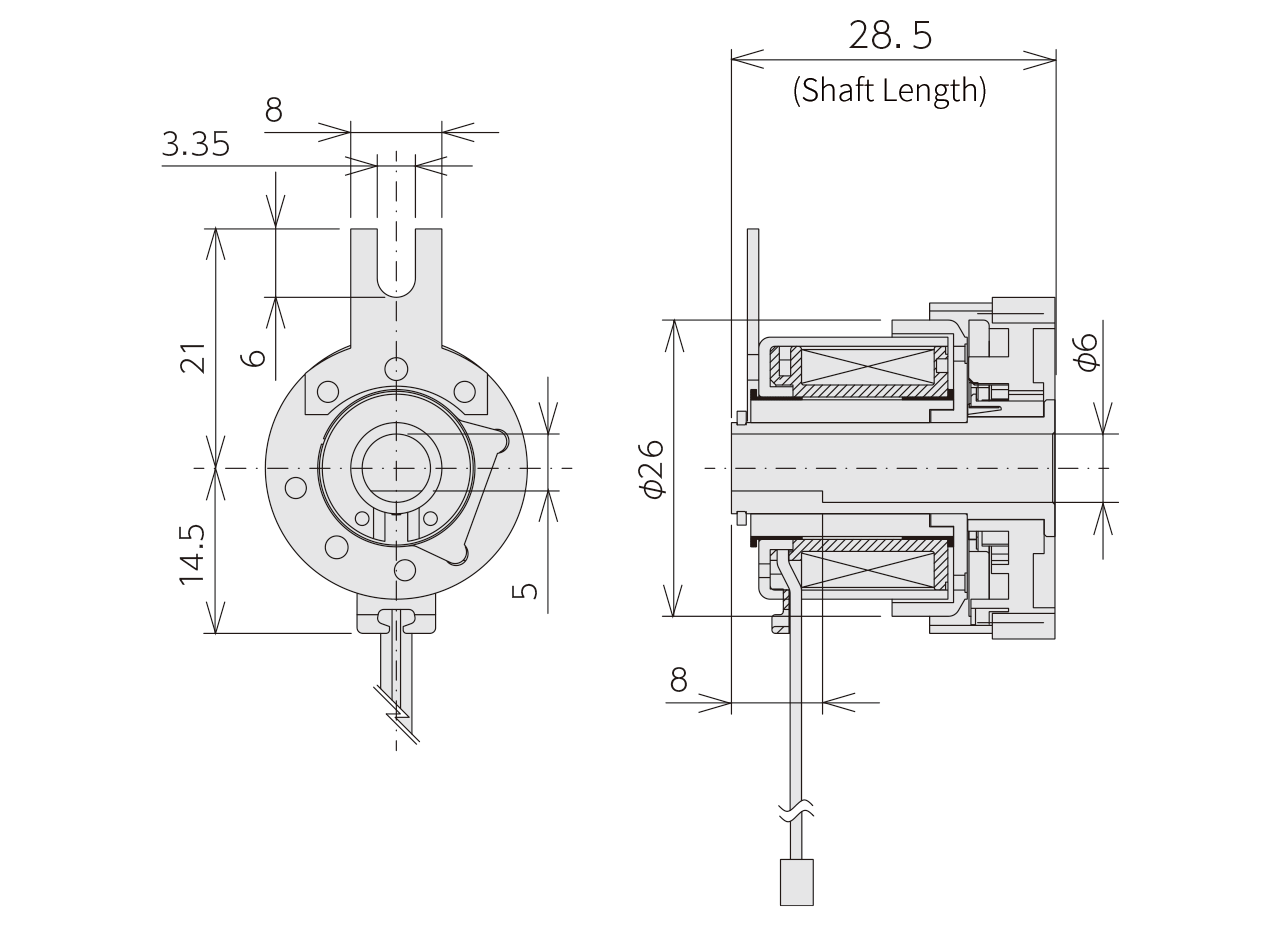

Magnetic Clutch MCA-26G
unit：mm

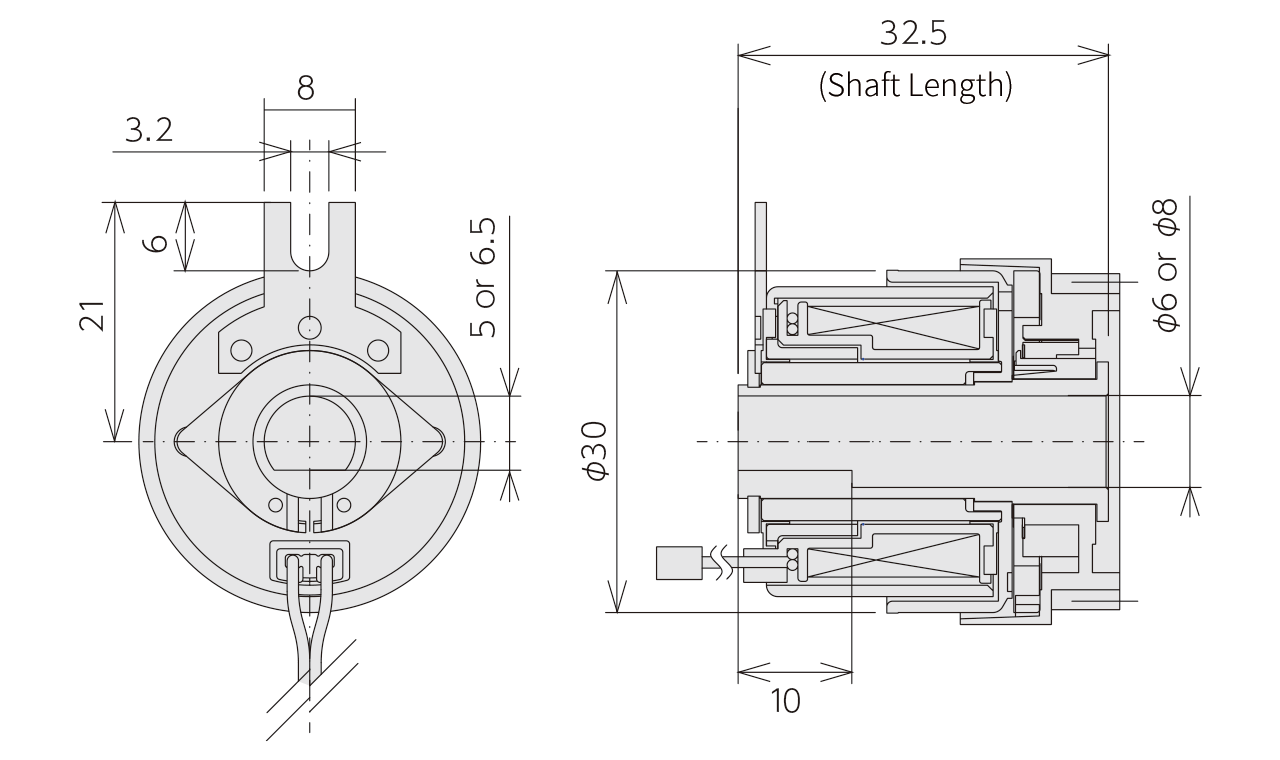

Magnetic Clutch MCA-30A
unit：mm
Specifications
| Type | MCA-26G | MCA-30A |
|---|---|---|
| Rated Voltage | DC24V | |
| Capacity | 4.0W（±10%） | |
| Static Friction Torque | Above 0.245Nm(2.5kgfcm) | Above 0.49Nm(5.0kgfcm) |
| Insulation Classification | E Class[Electrical Safety⋅TUV(IEC950)] A Class[UL⋅CSA] |
|
| Withstand Voltage | AC 600V for 1 second | |
| Insulating Resistance | Above 100MΩby DC500V-Mega | |
| Safety Standard | The standards of Electrical Safety, UL⋅CSA⋅TUV are satisfied | |
| Lead Wire | Standard wire of UL1061⋅VW-1:CSA⋅AWM AWG26:Black Others and halogen free compliance is also negotiable |
|
| Shaft | Besides of the standard, the direction and dimension of D-Cut shall be discussed | |
Catalogue Download
MCA-26G / MCA-30A393 KB
Application
- Office automation equipments (Multifunctional copyingmachine, Printer, Printing machine)
- Automatic vending machine
- ATM
- Household automatic door
- Automatic ticketing machine
- Medical equipments
- Automatic curtain ...etc.
