GEAR-TL
Power can be transmitted/cut off (overload protection) within the gearing of machinery/equipment
Characteristic
A spring gear-type torque limiter
A gear with a mechanism that transmits power when the torque is less than the standard, and slips when the torque is greater than the standard.
Compact type compatible with gears and coupling shapes
A compact type that retains torque up to 0.1 N・m.
In the case of a gear shape, it is possible to correspond from the root diameter of φ20.
In the case of the coupling shape, we can handle from the minimum diameter φ20.
Easy installation without tools
Easy installation by simply inserting it into the shaft with a D cut.
No need to adjust torque during using
It can be used without fine torque adjustment.

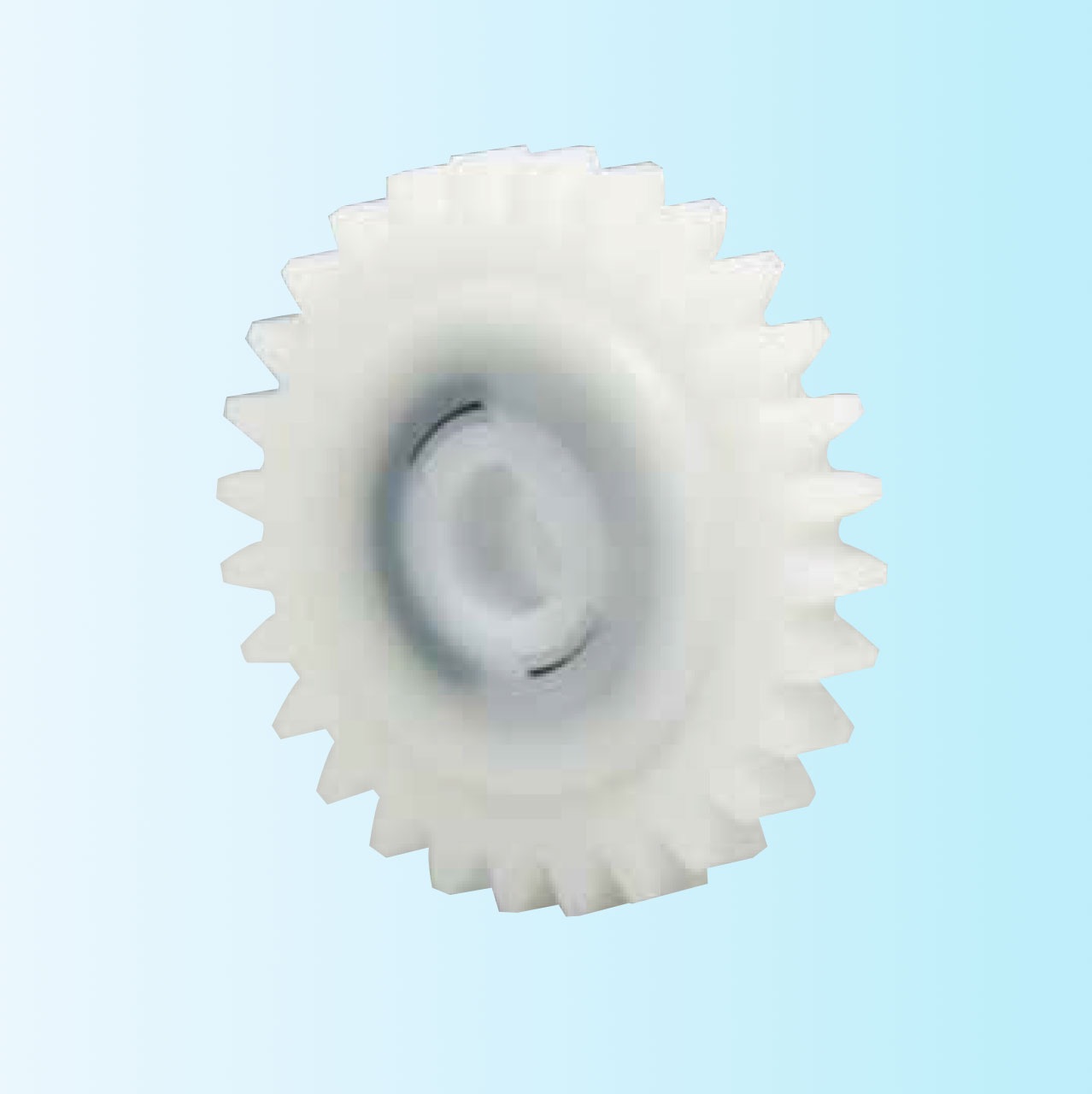

GEAR-TL
Structure & external form dimensions
GEAR-TL
unit：mm

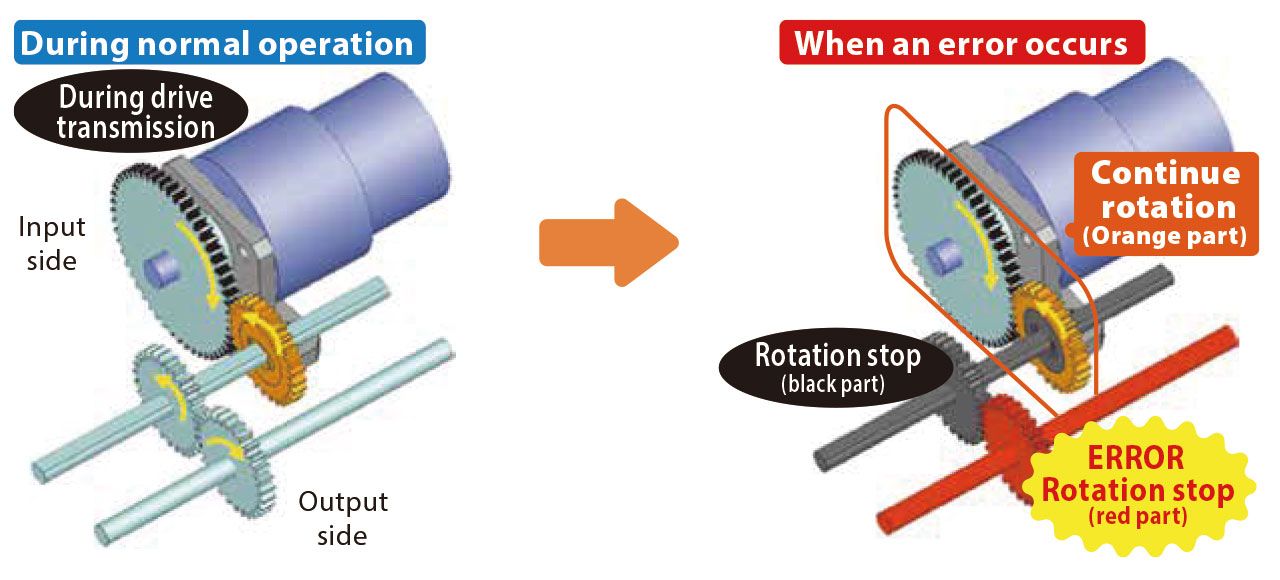

Image of operation
Specifications
| Model | GEAR-TL | |
|---|---|---|
| Rotation direction | CW, CCW whatever direction | |
| Slip torque | 0.1N.m ( Above 1kgf.cm) | |
| Dimensions | Radial diameter | In case of gear shape, available from M1, Z28 In case of coupling shape, it is possible to correspond from φ20 |
| Thrust diameter | 6mm | |
| Shaft diameter | φ6, φ8 available (Shaft inner shape D-cut) | |
As the product is under development, the shape and specifications are subjected to change.
Catalogue Download
GEAR-TL761 KB
Application
- OA equipment, amusement equipment, amusement equipment
- Simple position retention (tension retention)
- Overload protection
