RDS

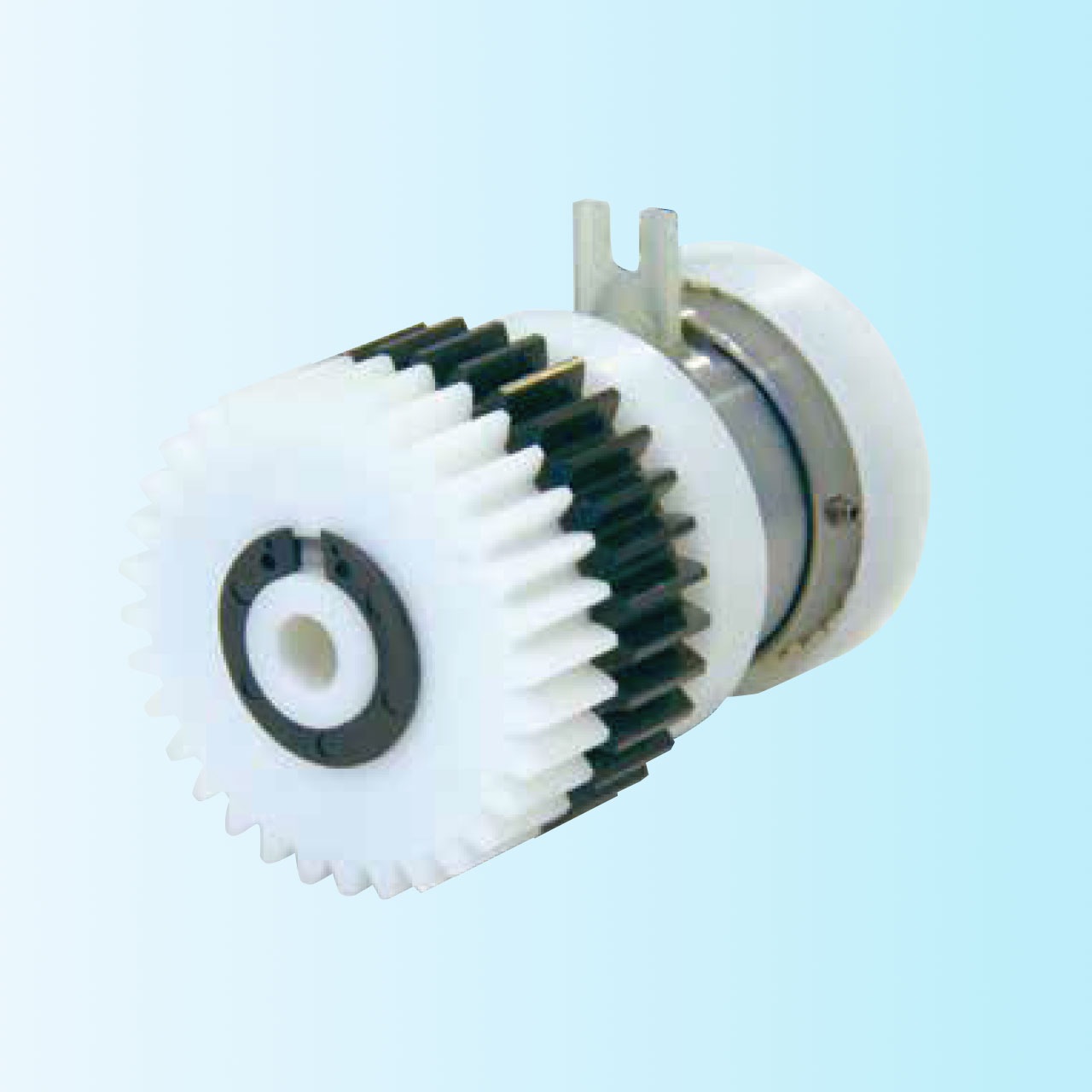

It is possible to switch the output rotate direction with simple ON / OFF control switch
Characteristic
Switchable by turning the power ON / OFF only
Complicated control is not necessary, rotate direction switching is realized only by an ON / OFF switch.
Agile response
By adopting clutch technology, it is possible to instantly switch the rotate direction.
Offer as an unit
No complicated design such as gearing and control is necessary.
Compact
It is smaller than combined gear mechanism, realizing space saving. (Shaft length: 50.6 Gear minimum outer diameter φ 34)
Easy installation
Adjustment is not necessary, it is easy to install.
RDS

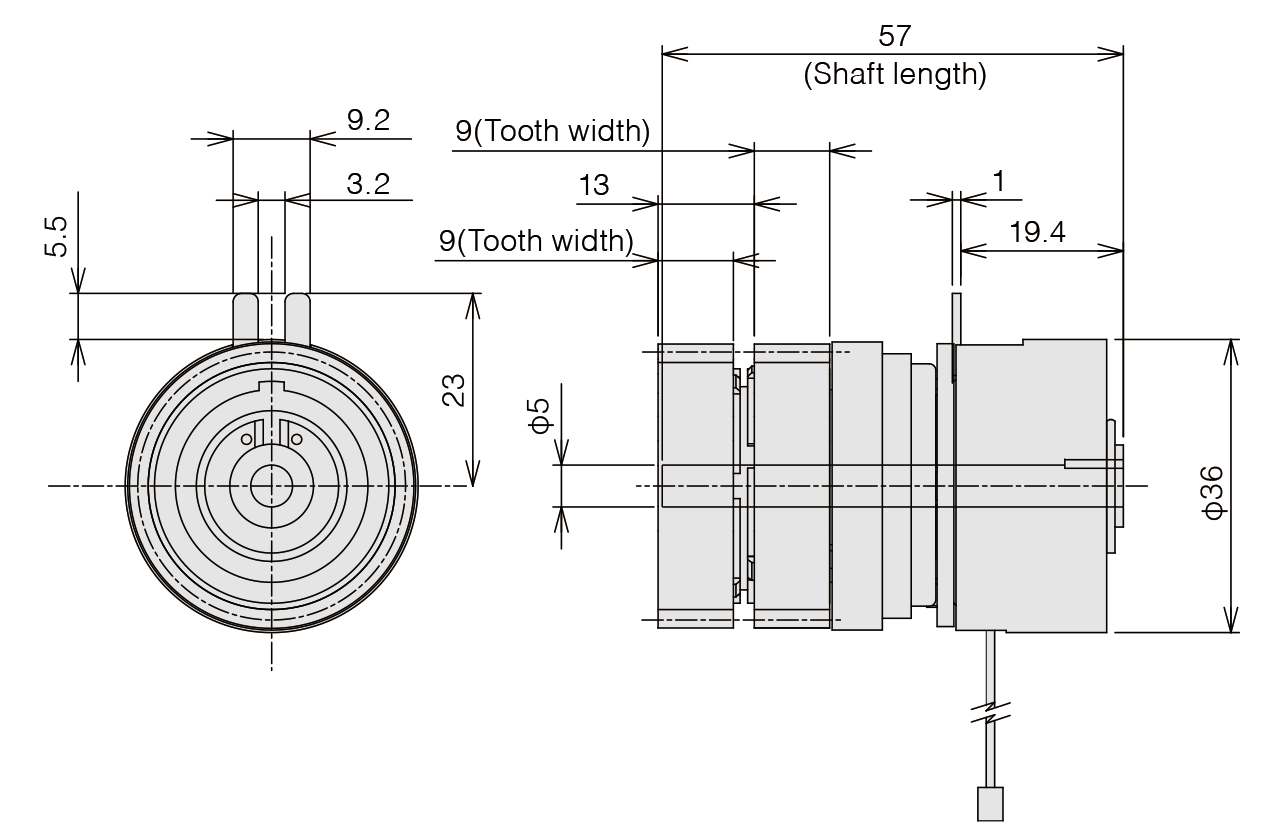

Structure & external form dimensions
RDS
単位：mm

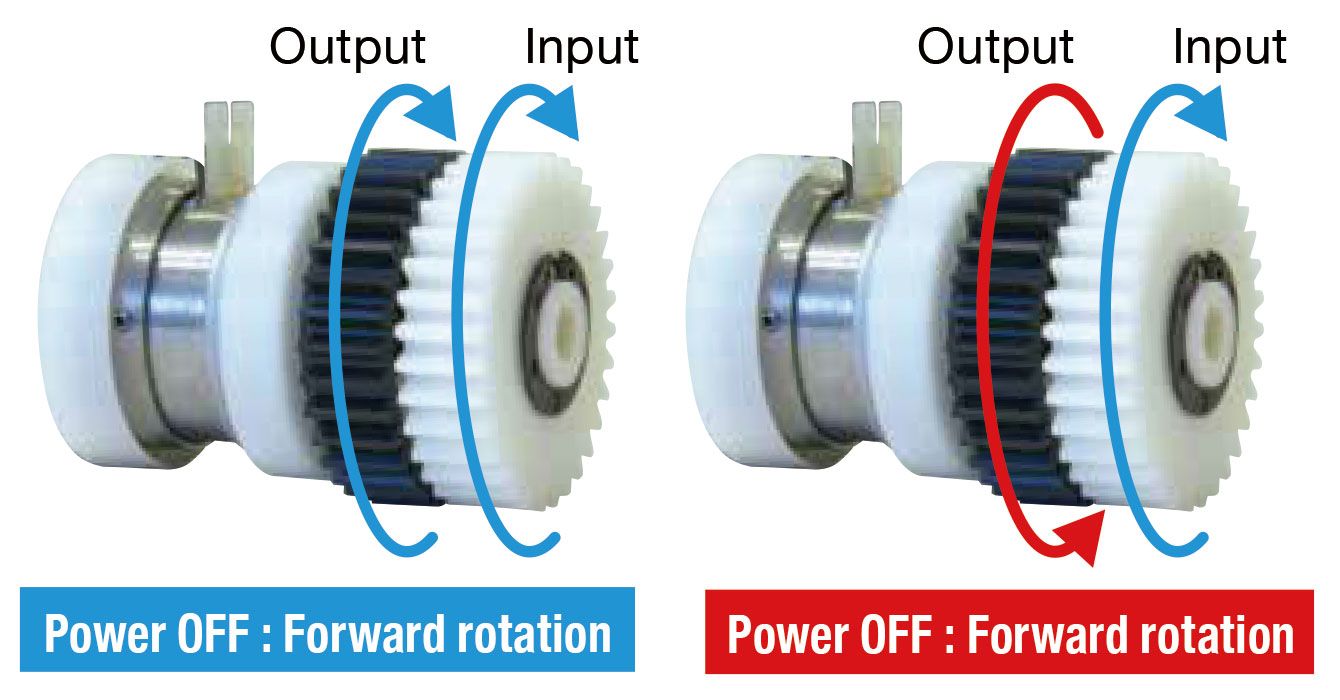

Destination of Operation
The input and output will work even if they are opposite.
* Power OFF: Reverse rotation, Power ON: Normal rotation is also possible
Specifications
| Type | RDS |
|---|---|
| Rated Voltage | DC24V |
| Capacity | 3.0W |
| Static friction torque | 0.147N・m（1.5kgfcm） |
| Idle torque | 0.049N・m（Below 50gfcm (Normal rotation)） |
| Rotational input method | gear |
| Direction of rotation | Both CW and CCW |
| Shaft length | 50.6mm |
The shape, specification etc are subject to change without prior notice.
Catalogue Download
RDS433 KB
Application
Office automation equipment
- Duplex printing mechanism
Amusement equipment
- Travel direction switching for amusement equipment
Industrial Equipment
- Stirring machine
- Rollsign
- Transport equipment
- Ticket insertion and ejection mechanism, such as ticket vending machines
