DSC-33C / DSC-37
High torque transmission clutch, featuring high reactivity of electromagnetic clutch and high reliability of spring clutch
Characteristic
Preventing performance degradation by dust-proof construction
Preventing performance degradation by using a high precision sealed case to package which will keep out dust.
Small and high torque performance
By fastening a spring, it generates several times of the toque in a small electromagnetic clutch.
Selectable take off directions
Related to the clutch baffle, lead wire take off place has 3 optional directions.
Outstanding reactivity
Distinguished reactivity is come from the isolated structure.
UL⋅CSA complied products
International standards UL⋅CSA complied materials are used in our parts e.g. coil, lead wire, ..etc.
They are able to assemble in export finished goods without modification.
Environmentally friendly product
Complied with RoHS ; halogen free compliance is also negotiable.
Internal supply in China
Lead time and delivery cost are reduced remarkably due to internal supply by our factory in Guang Dong Province, China.
DSC-33C
DSC-37

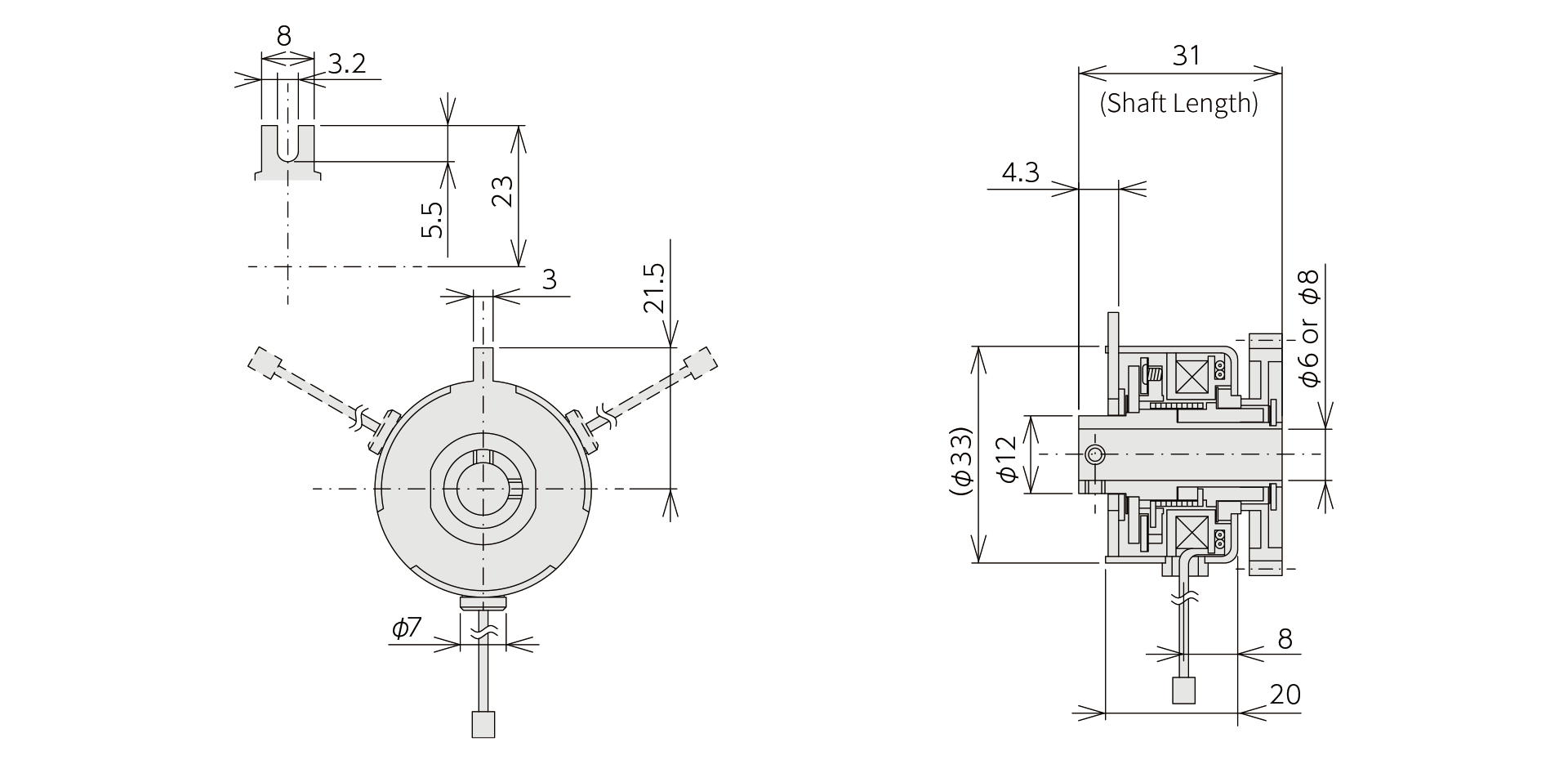

Structure & external form dimensions
DSC-33C
unit：mm
DSC-37
unit：mm
Specifications
| Type | DSC-33C | DSC-37 |
|---|---|---|
| Rated Voltage | DC24V | |
| Capacity | 4.0W（±10%） | 4.8W（±10%） |
| Static Friction Torque | Above 0.98Nm(10kgfcm) | Above 1.47Nm(15kgfcm) |
| Insulation Classification | E Class[Electrical Safety⋅TUV(IEC950)] A Class[UL⋅CSA] |
|
| Withstand Voltage | AC 600V for 1 second | |
| Insulating Resistance | Above 100MΩby DC500V-Mega | |
| Safety Standard | The standards of Electrical Safety, UL⋅CSA⋅TUV are satisfied | The standards of Electrical Safety, UL⋅CSA⋅IEC⋅EN⋅CE are satisfied |
| Lead Wire | Standard wire of UL1061⋅VW-1:CSA⋅AWM AWG26:Black | Standard wire of UL1007⋅VW-1:CSA⋅TR-64 AWG24:Black |
| Others and halogen free compliance is also negotiable | ||
| Shaft | Besides of the standard, the direction and dimension of D-Cut shall be discussed | φ2.5 ×12 pin Fixed Customization is negotiable |
Catalogue Download
Application
- Office automation equipments (Multifunctional copyingmachine, Printer, Printing machine)
- Automatic vending machine
- ATM
- Household automatic door
- Automatic ticketing machine
- Medical equipments
- Automatic curtain...etc.
